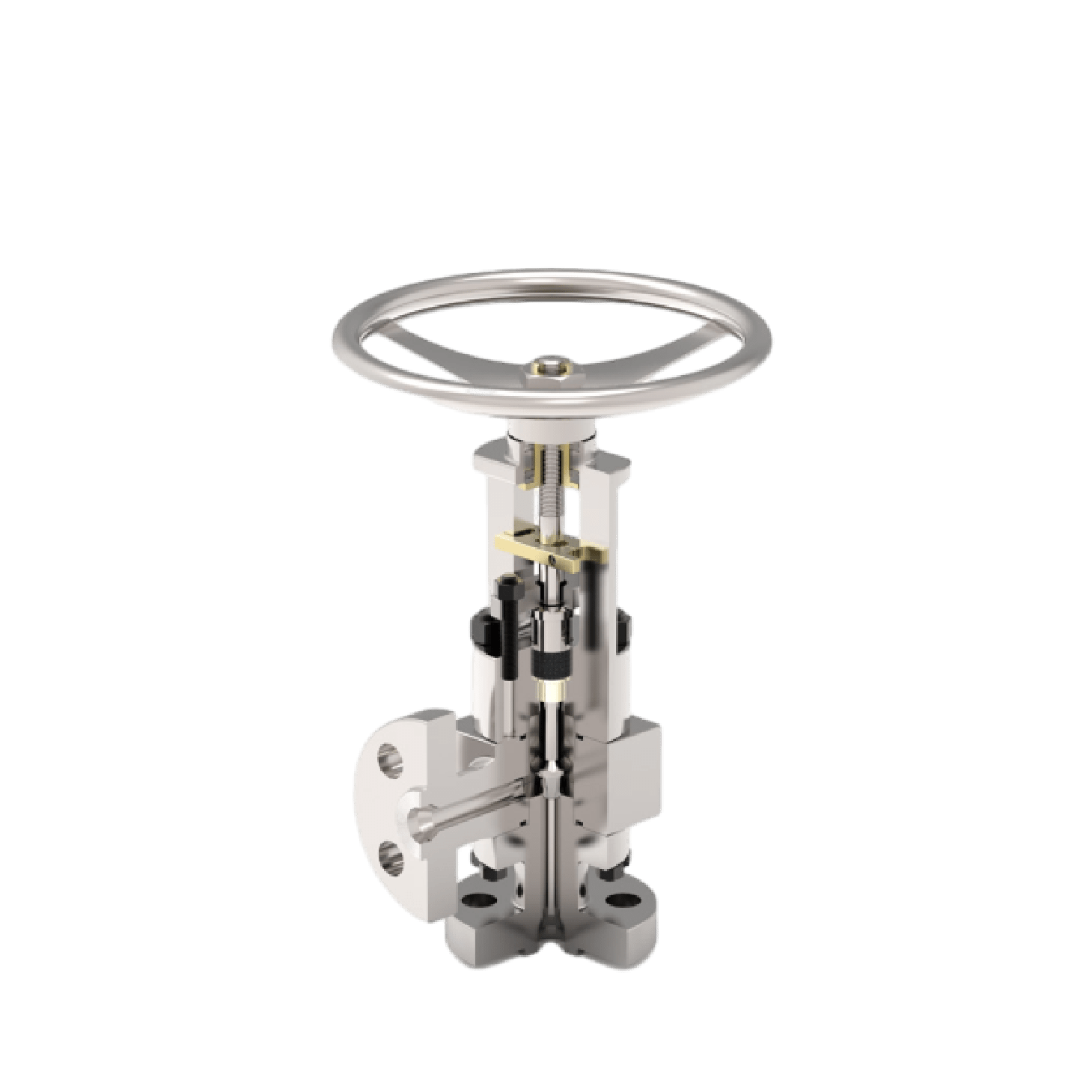

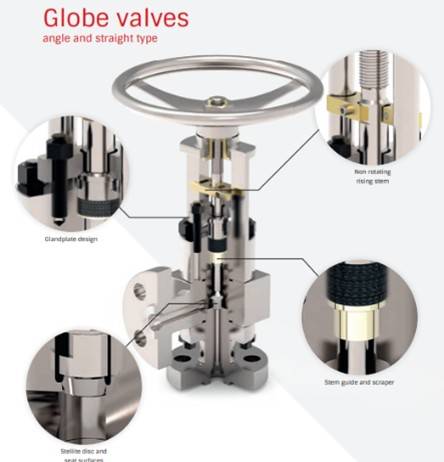

The angle globe valve is a modification of the basic standard pattern globe valve where the ends are at an angle of 90 degrees. The Red Point® angle globe valves have a streamlined curved bore to create optimal flow and lower CV value. They are used in applications that have periods of pulsating flow because of their capability to handle the slugging effect of this type of flow. To avoid accumulation and crystallization of the medium, packing flushing and heating steam jackets can be added to the valve design.
Our angle globe valves are available as forged or cast valves featuring exotic material options with short delivery times.
Features:
- Size & Bore : ANSI ¼” to 16”
- Pressure Range: ANSI 150 to 4,500 & API 5,000 to 10,000
- Fire Safe: Design and Certified API607, API6Fa, ISO10497
- Pattern: Straight, Angle, Y-Type
- Type of Disc: Plug, Needle, Swivel, Regulating Disc
- Connections : Flanged, BW,SW,THR,HUB
