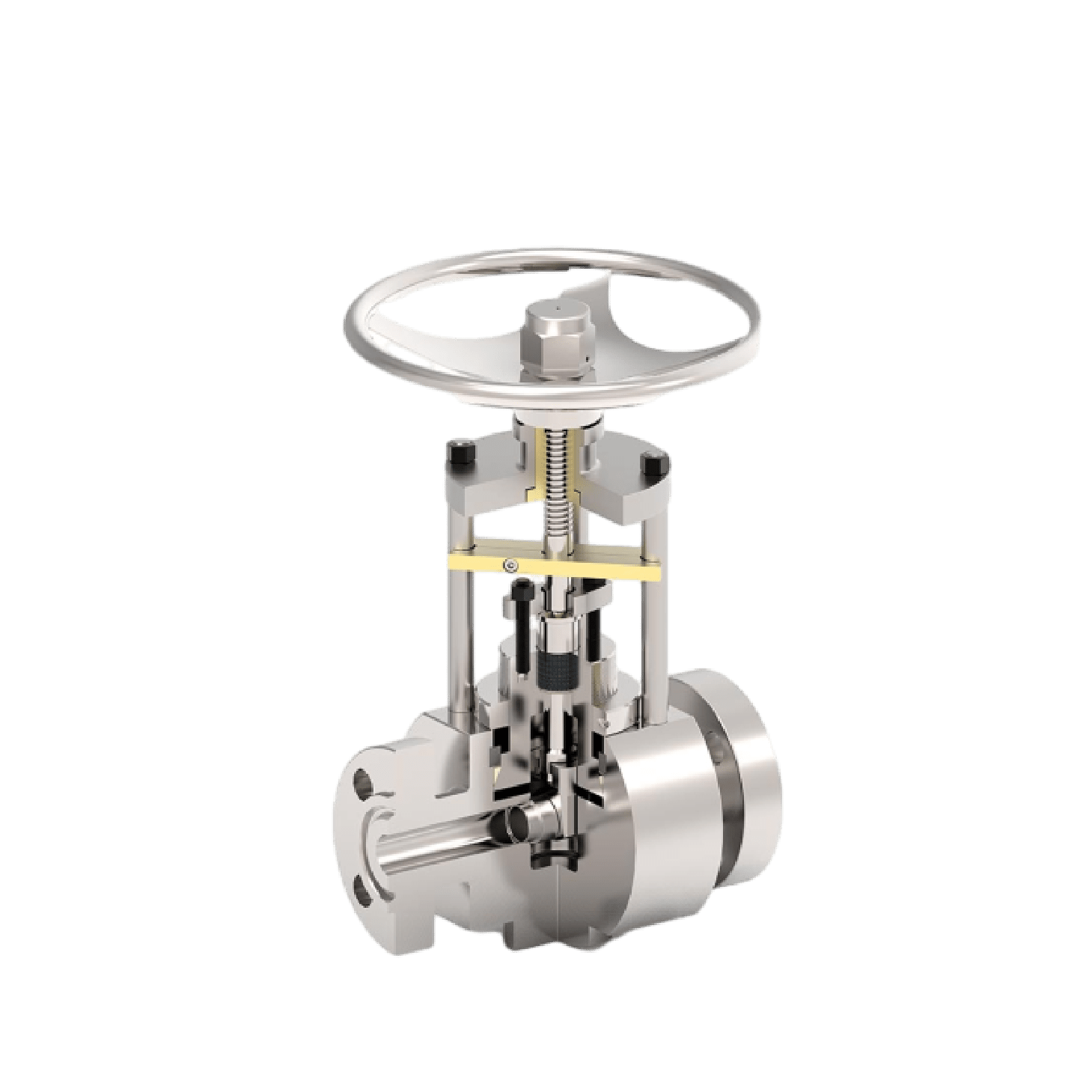

Our pressure seal gate valves are used for high pressure service, typically for pressures above 100 bar. The unique feature of the pressure seal bonnet is that the body-bonnet joints seal improves as the internal pressure within the valve increases. Typical pressure rating of the valve is 900, 1,500 and 2,500 pounds.
Our pressure seal gate valves are available as forged or cast valves featuring exotic material options with short delivery times.
Features:
- Size & Bore: ANSI 1/2” to 12”
- Pressure Range: ANSI 150 to 4,500
- Construction: Bolted, Welded , Extended
- Design: Bellow Sealed, Extended Bonnet, Pressure Seal Bonnet, Through Conduit
- Connections : Flanged,BW,SW,THR,HUB,PE
- Type of Wedge: Flexible, Solid, Parallel Slide, Expanding Wedge
